د.إ10,000.00

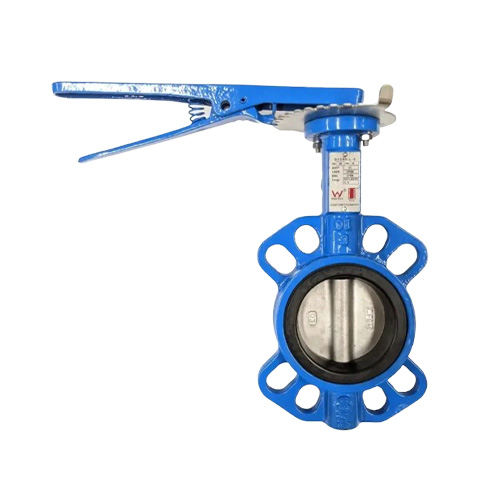

“A quarter-turn valve designed for isolation and throttling in shipboard piping. The wafer type body fits between flanges, with lever operation for quick manual control. Cast iron construction ensures durability in marine service. “
| Nominal Size (mm) | 40, 50, 65, 80, 100, 125 |
|---|---|
| Face-to-Face Length (L) | 43 mm, 46 mm, 52 mm, 56 mm |
| Flange Diameter (D) | 120 mm, 155 mm, 175 mm, 200 mm, 220 mm, 250 mm |
| Pitch Circle Diameter (PCD) | 90 mm, 120 mm, 140 mm, 160 mm, 180 mm, 210 mm |
| Bolt Holes (n × d) | 4 × 15 mm, 4 × 19 mm, 8 × 19 mm, 8 × 23 mm |
| Flange Thickness (t) | 14 mm, 16 mm, 18 mm, 20 mm, 22 mm |
