د.إ5,000.00

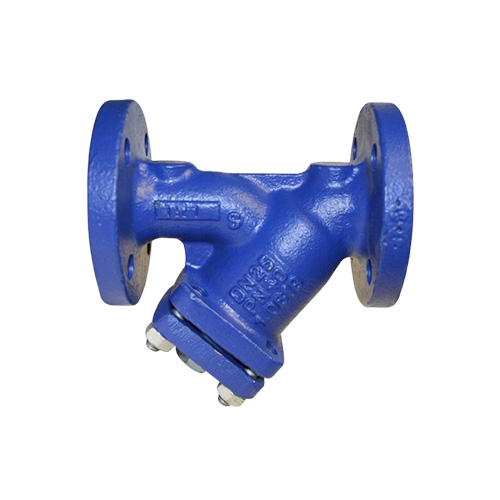

The Marine Cast Iron Y-Type Strainer is designed to remove debris and protect pumps, valves, and downstream equipment. Built to JIS F7220, rated for 5K service, it features a flanged body with a removable strainer basket for easy cleaning. Commonly installed in seawater, cooling, and ballast systems.
| Nominal Size (mm) | 15, 25, 32, 40, 50, 65, 80, 100 |
|---|---|
| Flange-to-Flange Length (L) | 130 mm, 160 mm, 180 mm, 200 mm, 230 mm, 290 mm, 310 mm, 350 mm |
| Flange Diameter (D) | 95 mm, 120 mm, 135 mm, 140 mm, 155 mm, 175 mm, 200 mm, 220 mm |
| PCD | 70 mm, 90 mm, 100 mm, 105 mm, 120 mm, 140 mm, 160 mm, 180 mm |
| Bolt Holes (n × d) | 4 × 13 mm, 4 × 15 mm, 4 × 19 mm, 8 × 19 mm |
| Flange Thickness (t) | 14 mm, 16 mm, 18 mm, 20 mm, 22 mm |
