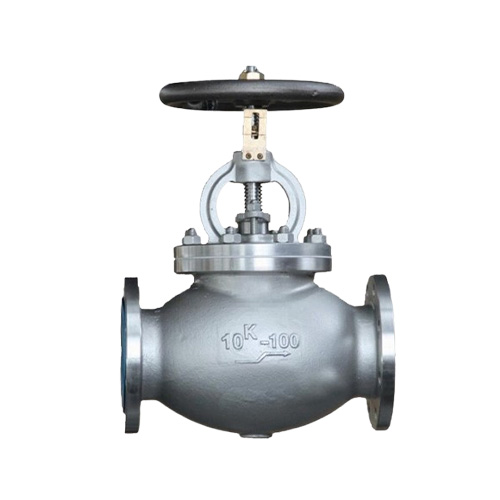

MARINE CAST IRON SCREW DOWN NON RETURN GLOBE VALVE

د.إ10,000.00

The Marine Cast Iron Screw Down Non-Return Globe Valve (SDNR) is a dual-function valve widely used in shipboard piping systems. It operates as a manual globe valve for regulating or stopping flow, while also acting as a check valve to automatically prevent backflow. Constructed from durable cast iron (FC200/HT200), it is designed to withstand marine conditions and is suitable for fresh water, oil, steam, and air systems.

Nominal Size (mm)

Flange-to-Flange Length (L)

210 mm
250 mm
280 mm
340 mm
220 mm
270 mm
300 mm
350 mm

Flange Diameter (D)

130 mm
155 mm
180 mm
200 mm
175 mm
185 mm
210 mm

Pitch Circle Diameter (PCD / C)

105 mm
130 mm
145 mm
165 mm
120 mm
140 mm
150 mm
175 mm

Bolt Holes (n × d)

4 × 15 mm
4 × 19 mm
8 × 19 mm

Flange Thickness (t)

16 mm
18 mm
20 mm
22 mm
24 mm

Overall Height (H)

270 mm
300 mm
310 mm
360 mm
285 mm
305 mm
315 mm
370 mm

Weight (kg)

14.8
21.3
27.6
40.4
16
20
23
33

Clear

SKU: JIS F 7353 Category: Ship Spare Parts

Additional information

Nominal Size (mm)	50, 65, 80, 100
Flange-to-Flange Length (L)	210 mm, 250 mm, 280 mm, 340 mm, 220 mm, 270 mm, 300 mm, 350 mm
Flange Diameter (D)	130 mm, 155 mm, 180 mm, 200 mm, 155 mm, 175 mm, 185 mm, 210 mm
Pitch Circle Diameter (PCD / C)	105 mm, 130 mm, 145 mm, 165 mm, 120 mm, 140 mm, 150 mm, 175 mm
Bolt Holes (n × d)	4 × 15 mm, 4 × 19 mm, 8 × 19 mm
Flange Thickness (t)	16 mm, 18 mm, 20 mm, 22 mm, 24 mm
Overall Height (H)	270 mm, 300 mm, 310 mm, 360 mm, 285 mm, 305 mm, 315 mm, 370 mm
Weight (kg)	14.8, 21.3, 27.6, 40.4, 16, 20, 23, 33
