د.إ10,000.00

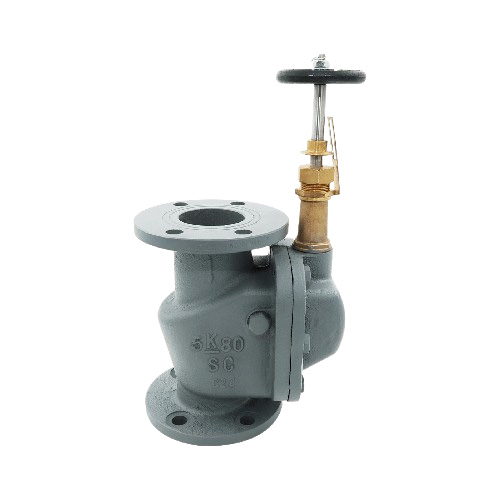

This specialized marine component is a Marine Cast Steel Straight Storm Valve , designed to meet either the 5K or 10K pressure rating as specified by the JIS F3060 standard. This type of valve is a non-return component, critically important for preventing the ingress of seawater into the hull, typically when fitted to the ship’s shell plating. Unlike manually operated valves, a Storm Valve automatically opens under the pressure of effluent water flowing out and immediately closes to prevent backflow from external wave action or high water levels. Constructed from Cast Steel for robust performance and corrosion resistance, it is a straight-type design, ensuring minimal flow restriction for discharge. This particular valve model is available in two large nominal pipe sizes: 100 MM and 125 MM.
| Nominal Size (mm) | 100, 125 |
|---|---|
| Pressure Rating | 5K, 10K |
| Flange-to-Flange Length (L) | 280 MM, 290 MM, 330 MM, 340 MM |
| Flange Diameter (D) | 200 MM, 210 MM, 235 MM, 250 MM |
| Pitch Circle Diameter (PCD / C) | 165 MM, 175 MM, 200 MM, 210 MM |
| Bolt Holes (n × d) | 8 x 19 MM, 8 X 23 MM |
| Flange Thickness (t) | 16 MM, 18 MM, 20 MM |
| Overall Height (H) | 250 MM, 270 MM |
