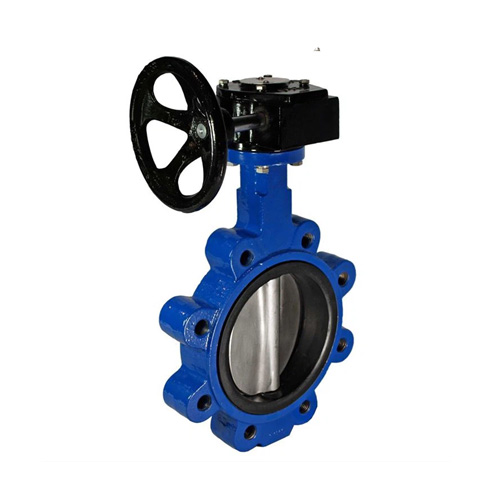

This valve is a Marine Cast Steel Flanged Butterfly Valve, Gear Operated , compliant with the JIS F7480 standard and suitable for both 5K and 10K pressure services. This type of valve is a quarter-turn component used for isolating or regulating flow. Its butterfly design features a disc that rotates 90 degree within the pipe bore, offering quick operation. The inclusion of a gear operated mechanism is essential for larger sizes, providing mechanical advantage to allow for easier and more precise control of the disc. Constructed from Cast Steel with flanged ends for robust bolted connection into the piping system, it is designed for durability in marine applications. This specific model is available in the following large nominal pipe sizes: 150 MM, 200 MM, 250 MM, and 300 MM.
| Nominal Size (mm) | 150, 200, 250, 300 |
|---|---|
| Flange-to-Flange Length (L) | 178 MM, 190 MM, 210 MM, 230 MM, 250 MM |
| Flange Diameter (D) | 280 MM, 330 MM, 400 MM, 445 MM |
| Pitch Circle Diameter (PCD / C) | 240 MM, 290 MM, 355 MM, 400 MM |
| Bolt Holes (n × d) | 8 X 23 MM, 12 X 23 MM, 12 X 25 MM, 16 X 25 MM |
| Flange Thickness (t) | 22 MM, 24 MM, 26 MM |
| Overall Height (H) | 420 MM, 470 MM, 520 MM, 570 MM |
